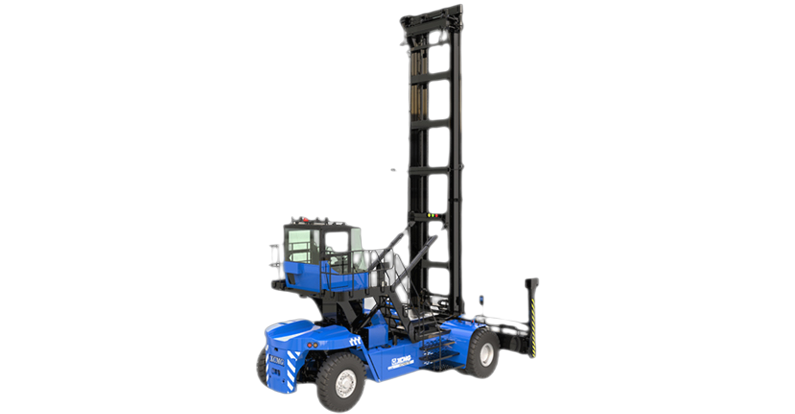

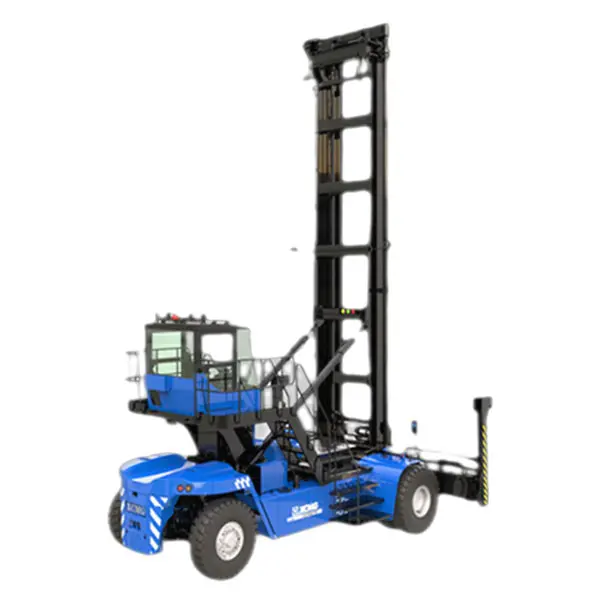

Container Handler – XCH907E
- Model: XCH907E
- Max. Lifting Capacity (kg): 9000
- Max. Lifting Height (mm): 18780
- Number of Stacking: 7 (8’6”) /6 (9’6”)
- Payload (kg): 25873
- Drive motor power (kW): 100
- Max gradeability (%): 30
- Max lifting height (mm): 18780
- Rated lifting capacity (kg): 9000
- Number of Stacking - 7 (8’6”) /6 (9’6”)
- Spreader width (mm): 6080
- Max lifting speed (mm/s): 450
XCMG XCH907E uses Drive Motor: DM250H41.P12H2 motor, with Power: 100KW; Lifting Motor: DM085H37, with power: 70kW. Oil Pump Motor: UM050H31-C, with Power: 120kW. Water-cooled permanent magnet synchronous motor. XCMG spreader for single containers, applicable for handling 20′ and 40′ containers. Maximum lifting capacity is 9 t, and sideways opening is ±600 mm. Electric proportional variable pump system, with load sensitive function, energy saving. An air-cooled hydraulic oil radiator is used to cool the system. Oil tank capacity: 420 L. Two-stage, telescopic pole, anti-torque design provides better operating performance and anti-torque capability. Cabin Integrated design for driving and operating functions, simple and artistic appearance. Panoramic, low instrument panel design, wide view. Ergonomically designed, spacious, and comfortable interior with high-power heating and air conditioning devices. The large screen display is easy to use.
